✦ UAV Systems
Hand-Built. Flight-Tested. AI-Augmented.
⚠️ Hobby project. I built this drone for personal engineering and learning. I am not a drone manufacturer, I do not sell drones, and I do not provide commercial drone services. This is a showcase of my hardware and edge AI work.
Custom 1500g carbon quadcopter hand-soldered from bare components. Initially flown on Betaflight, powered by ArduPilot, with onboard Raspberry Pi 5 edge vision AI in development. EASA A1/A3 certified, €2.6M insured.
Aerial flight — 20s stable FPV flight showcase
Build Gallery

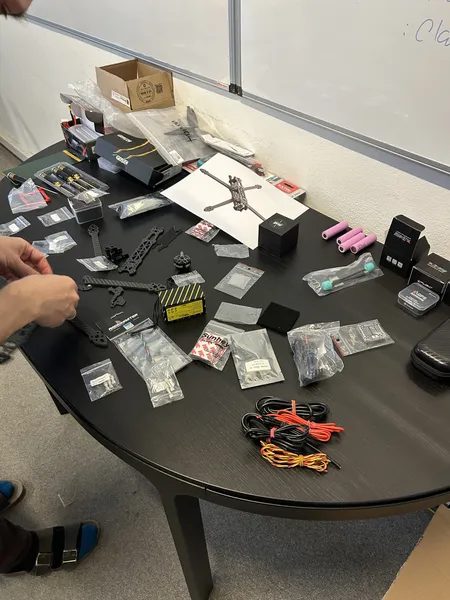

Components

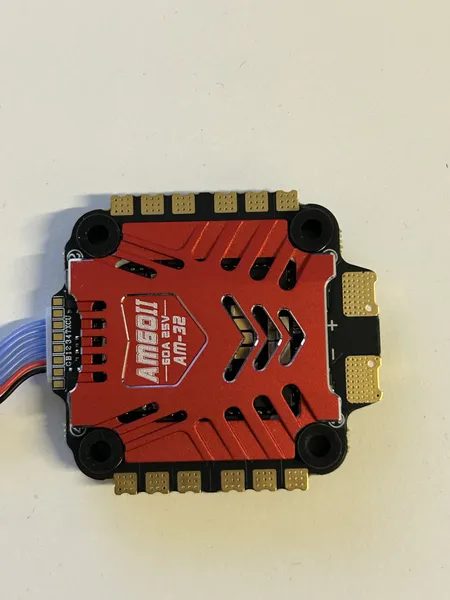

ESC & Electronics

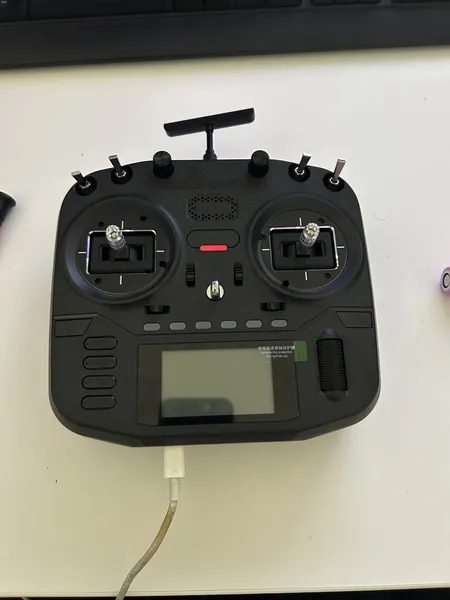

RC Transmitter

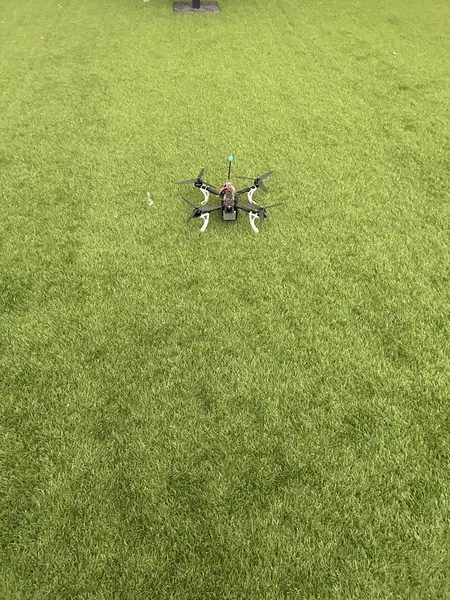

In Flight

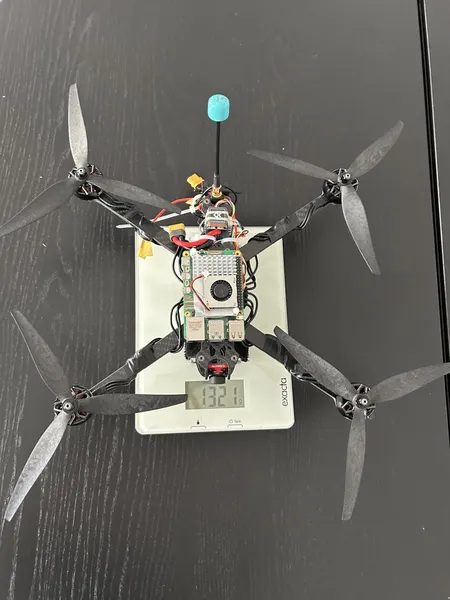

On Scale

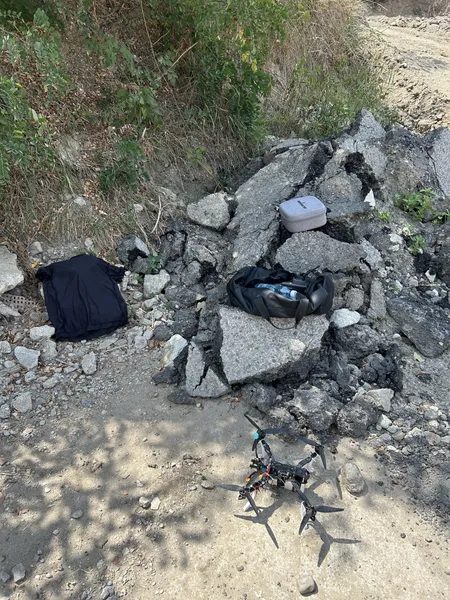

Ready for Flight
Build & specifications
Hardware Specifications & Build Components
Frame & Propulsion
- Frame GEPRC Mark4-8 8" Carbon
- Motors iFlight XING2 2809 1250Kv × 6
- Propellers HQprop LR8X4.2X3 Triblade × 8
- Main Battery GNB 5500mAh 6S 70C XT60 LiPo
Electronics & Flight Controller
- FC & ESC Stack Skystars H7 Dual Gyro + AM60 AM32 60A
- Autopilot Firmware ArduPilot Copter (Betaflight tested)
- Receiver RadioMaster XR1 Nano ELRS
- GPS & Compass FlyfishRC M10QMC-5883L GNSS
- Power Filter 1000μF 50V Low-ESR Capacitor
Onboard Edge AI & Vision
- AI Companion Computer Raspberry Pi 5 (8GB RAM)
- Dedicated BEC 2-13S 5V 5A Step-Down Module
- Vision Sensor Raspberry Pi Camera Module 3
- Storage High-Endurance 64GB Class A2 MicroSD
- Cooling & Servo Active Cooler + MG90S Payload Servo
FPV Video & Transmission
- FPV Camera Caddx Ratel 2 Micro Starlight
- Video Transmitter (VTX) Axisflying Smurfs 25-1600mW 5.8GHz
- Antennas Foxeer Lollipop 4 Plus High-Gain × 2
- FPV Goggles Skyzone Cobra X V4 Diversity
Ground Control & Power Infrastructure
- Radio Controller RadioMaster Pocket ELRS (EdgeTX)
- Radio Power Samsung 35E 18650 3500mAh × 2
- Multi-Chemistry Charger iSDT 608AC 50W AC / 200W DC
- Safety & Telemetry Fireproof LiPo Safe Bag & Kevlar Straps
